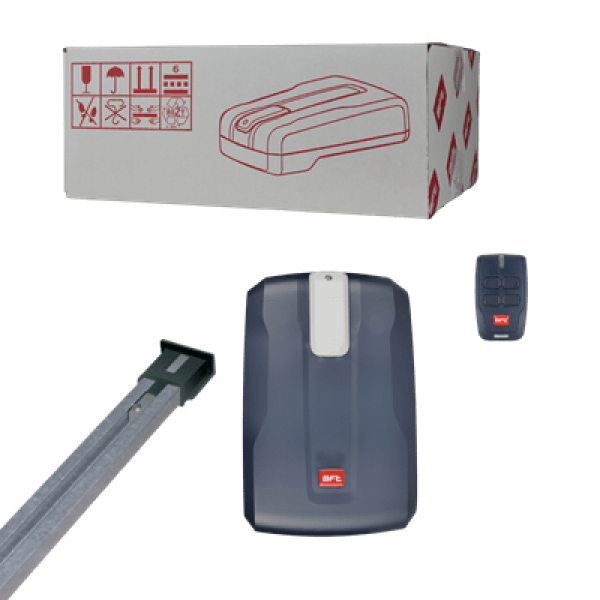

BFT BOTTICELLI SMART BT A850 Garage Door Opener UAE
Price 1,399 AEDIn Stock
BFT BOTTICELLI SMART BT A850 850N 24V Garage Door Motor
The BFT BOTTICELLI SMART BT A850 Garage Door Opener is a powerful 24V automatic operator designed for sectional garage doors with a maximum surface area of up to 13 m². With 850N pulling and pushing force, fast opening speeds and BFT D-Track technology, it provides reliable garage door automation for villas, residential buildings and suitable commercial applications across the UAE.
The BOTTICELLI SMART BT A850 is managed by the VENERE BT A DIS control unit and uses encoder technology for precise door movement. Depending on the rail system, maximum opening speed reaches 210 mm/sec with a chain rail or 240 mm/sec with a belt rail.
BFT's D-Track force management technology continuously manages the force required during door movement, while slowdown control provides smooth operation near the opening and closing positions.
BFT BOTTICELLI SMART BT A850 Features
- 850N pulling and pushing force
- Suitable for sectional garage doors up to 13 m²
- 24V garage door operator
- VENERE BT A DIS control unit
- BFT D-Track force management technology
- Encoder movement control
- Maximum speed up to 210 mm/sec with chain rail
- Maximum speed up to 240 mm/sec with belt rail
- Slowdown during operation
- Mechanical locking system
- Steel cord or cable manual release
- Up to 50 daily movements under specified operating conditions
- U-Link interconnectivity support
- IP20 protection rating
BFT BOTTICELLI SMART BT A850 Technical Specifications
| Brand | BFT |
| Model | BOTTICELLI SMART BT A850 |
| Product Code | P915212 00002 |
| Product Type | Garage Door Opener |
| Operator Voltage | 24V |
| Control Unit | VENERE BT A DIS |
| Power Consumption | 200W |
| Pulling / Pushing Force | 850N |
| Maximum Door Surface | 13 m² |
| Maximum Chain Rail Speed | 210 mm/sec |
| Maximum Belt Rail Speed | 240 mm/sec |
| Daily Movements | 50 |
| Limit Switch | Encoder + Mechanical Opening Stop |
| Slowdown | Yes |
| Impact Reaction | D-Track |
| Locking | Mechanical |
| Manual Release | Steel Cord / Cable |
| Interconnectivity | Yes |
| Protection Rating | IP20 |
| Operating Temperature | -20°C to +60°C |
850N Garage Door Motor
The BFT BOTTICELLI SMART BT A850 provides 850N of pulling and pushing force for compatible sectional garage doors. It is designed for doors with a maximum surface area of up to 13 m², subject to correct door balancing and installation conditions.
High-Speed Garage Door Operation
The BOTTICELLI SMART BT A850 provides fast automatic opening to reduce waiting time when entering or leaving a garage. Maximum opening speed depends on the selected rail system:
- Chain Rail: up to 210 mm/sec
- Belt Rail: up to 240 mm/sec
BFT D-Track Technology
BFT D-Track technology manages the force required to move the garage door during operation. Combined with encoder movement control, it provides precise and controlled automatic door movement.
VENERE BT A DIS Control Unit
The integrated VENERE BT A DIS control unit manages the BOTTICELLI SMART BT A850 garage door operator. It supports programming, remote control management, encoder operation and compatible BFT automation functions.

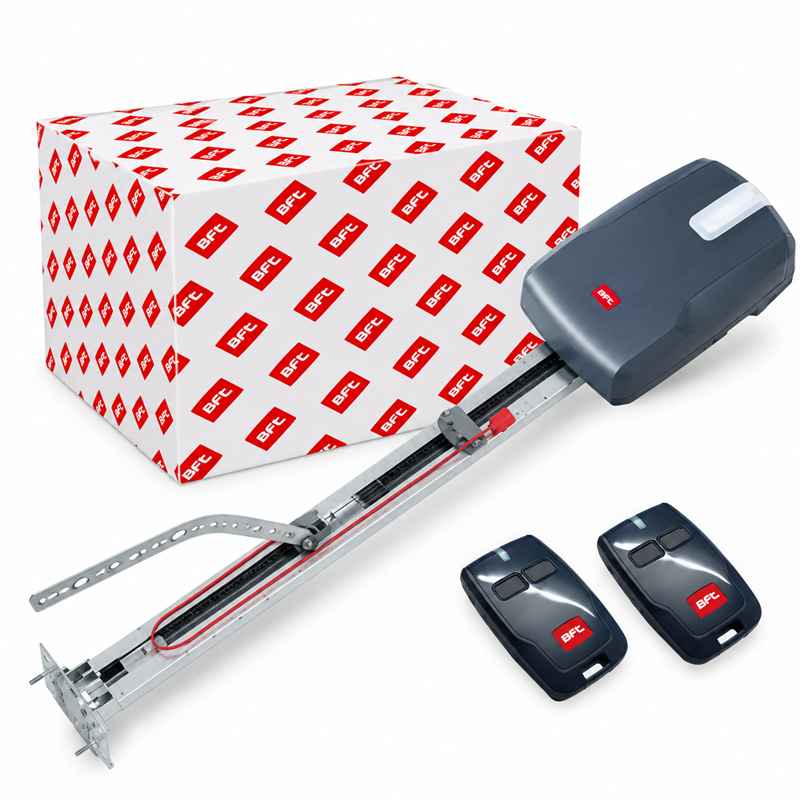

Chain Rail & Belt Rail Options
The BFT BOTTICELLI SMART BT A850 can operate with compatible BFT chain or belt rail systems. The correct rail length should be selected according to the garage door height and installation requirements.
The belt rail provides faster operation of up to 240 mm/sec, while compatible chain rail configurations provide speeds up to 210 mm/sec.
Suitable Applications
- Villa garage doors
- Residential sectional garage doors
- Apartment parking garages
- Private garages
- Commercial garage entrances
- Suitable warehouse sectional doors
- Automatic sectional door systems
BFT BOTTICELLI A850 Accessories
- BFT chain rail
- BFT belt rail
- BFT remote controls
- BFT photocell safety sensors
- Wall-mounted push buttons
- External release accessories
- Compatible smart access controllers
BFT BOTTICELLI SMART BT A850 Installation in UAE
Professional BFT BOTTICELLI SMART BT A850 installation in UAE is available for villas, residential buildings and suitable commercial garage doors. Correct door balancing, rail installation, travel programming and safety setup are important for reliable automatic operation.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Buy BFT BOTTICELLI SMART BT A850 in UAE
Looking for a BFT BOTTICELLI SMART BT A850 garage door opener in UAE? This 850N 24V operator provides fast automatic operation for compatible sectional garage doors up to 13 m² with encoder control and BFT D-Track technology.
Contact us for BFT BOTTICELLI SMART BT A850 price, rail options, availability, installation and technical support in UAE.
