BFT ICARO SMART AC A2000 KG Sliding Gate Motor UAE

Industrial Sliding Gate Automation for Heavy Duty & High Traffic Applications

The BFT ICARO SMART AC A2000 KG Sliding Gate Motor is a powerful Italian-engineered automation system designed for heavy-duty sliding gates weighing up to 2000 KG. Developed for industrial facilities, logistics centers, factories, warehouses and high-traffic commercial entrances, this advanced gate operator delivers exceptional reliability, safety and long-term performance.

Powered by a robust 230V motor and advanced LEO B CBB L02 control unit, the ICARO SMART AC A2000 provides smooth gate movement at a speed of 9 metres per minute. Its intelligent automation technology is specifically designed to manage large and heavy gates operating under demanding conditions.

Equipped with an integrated encoder, D-Track torque management system and mechanical safety clutch, the motor continuously monitors operating conditions to ensure safe and precise movement. The oil-bath gearbox further enhances durability and reduces wear, making it suitable for continuous heavy-duty operation.

Built for very intensive use applications, the BFT ICARO SMART AC A2000 combines Italian engineering excellence, smart connectivity and advanced safety technologies to deliver professional gate automation solutions across Dubai, Sharjah, Abu Dhabi and throughout the UAE.

BFT ICARO SMART AC A2000 KG Features

• Suitable for sliding gates up to 2000 KG
• Original BFT Italian automation technology
• 230V heavy-duty motor system
• LEO B CBB L02 intelligent control unit
• D-Track torque management technology
• Integrated encoder system
• Mechanical safety clutch protection
• Oil bath gearbox for long service life
• Electromechanical limit switch system
• Smooth slowdown functionality
• Mechanical locking protection
• Smart interconnectivity support
• Designed for very intensive operation

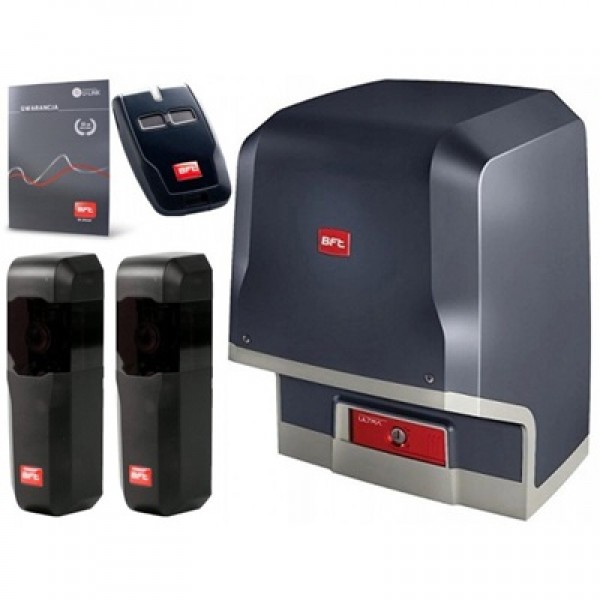

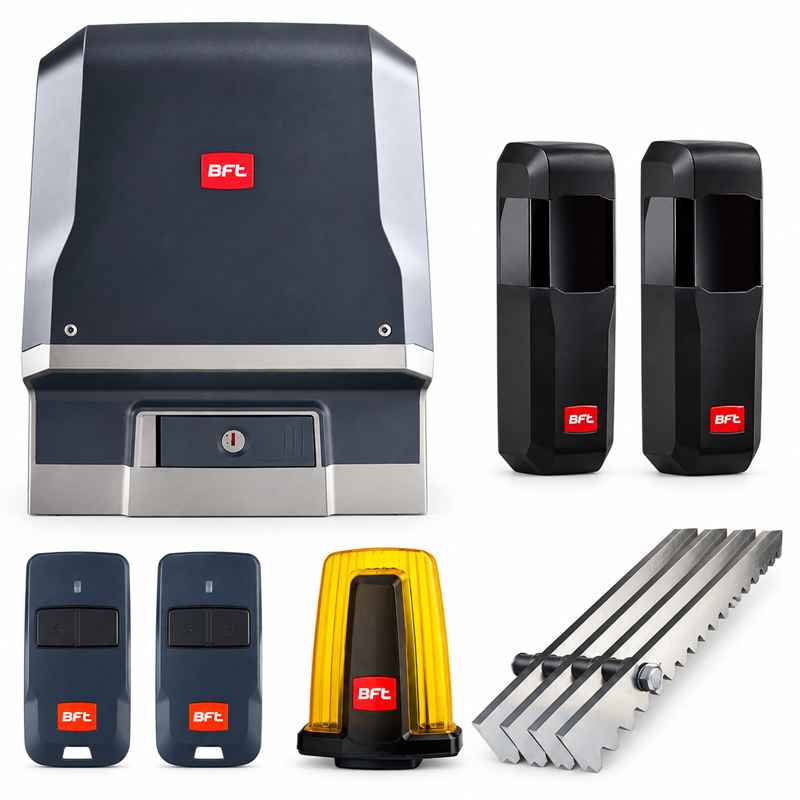

BFT ICARO SMART AC A2000 KG Kit Includes

• 1 x BFT ICARO SMART AC A2000 Sliding Gate Motor
• 1 x Pair of Self-Aligning Photocell Safety Sensors
• 1 x Flashing Light with Integrated Antenna
• 2 x MITTO B RCB04 R1 4-Channel Remote Controls
• 1 x Push Button
• 4 x Nylon Rack 1 Meter Each
• 1 x Fixing Plate

Applications

• Industrial sliding gates
• Factory entrances
• Warehouse access systems
• Logistics and distribution centers
• Commercial property entrances
• Large residential compounds
• Parking and security gate systems
• High traffic access control installations

Technical Specifications

• Model: BFT ICARO SMART AC A2000
• Product Code: P925236 00002
• Maximum Gate Weight: 2000 KG
• Motor Voltage: 230V
• Control Unit: LEO B CBB L02
• Board Power Supply: 230V
• Power Consumption: 750W
• Gate Speed: 9 m/min
• Limit Switch Type: Electromechanical
• Pinion Module: 4
• Slowdown Function: Yes
• Locking System: Mechanical
• Impact Reaction: Mechanical Clutch + Encoder
• Protection Rating: IP24
• Operating Temperature: -20°C to +55°C
• Frequency of Use: Very Intensive
• Interconnectivity: Yes

Why Choose BFT ICARO SMART AC A2000 KG?

• Original Italian engineering and manufacturing quality
• Designed for gates up to 2000 KG
• Oil bath gearbox for enhanced durability
• D-Track intelligent torque management system
• Integrated encoder for precise control
• Suitable for industrial and high-traffic applications
• Professional installation and technical support available across UAE
