BFT KUSTOS BT A25 400 KG Swing Gate Motor UAE
Price 2,400 AEDIn Stock

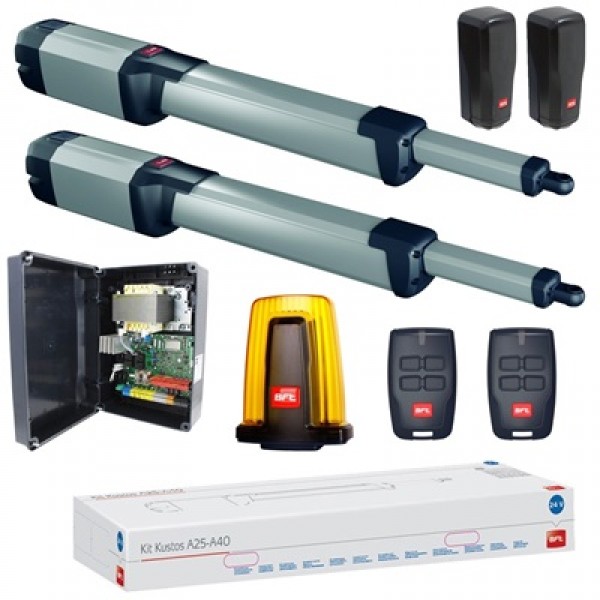

BFT KUSTOS BT A25 24V Automatic Swing Gate Opener
The BFT KUSTOS BT A25 400 KG Swing Gate Motor is a 24V electromechanical swing gate opener designed for gate leaves weighing up to 400 KG and measuring up to 2.5 metres. It is suitable for villas, residential compounds, commercial properties and other entrances requiring reliable automatic swing gate operation across the UAE.
Powered by a 24V motor with 40W power consumption, the KUSTOS BT A25 provides smooth and controlled automatic gate movement. The operator works with the BFT THALIA control unit, providing advanced automation management for single and double-leaf swing gate installations.
The KUSTOS BT A25 incorporates BFT D-Track force management, magnetic limit switches and slowdown functionality. These technologies provide accurate gate positioning and controlled movement while helping manage operating forces during opening and closing.
BFT KUSTOS BT A25 Features
- Suitable for swing gate leaves up to 2.5 metres
- Maximum gate leaf weight up to 400 KG
- 24V electromechanical swing gate operator
- 40W power consumption
- Compatible with BFT THALIA control unit
- BFT D-Track force management
- Magnetic limit switch system
- Approximately 295 mm useful rod stroke
- Maximum opening angle up to 118°
- Approximately 13-second operating cycle
- Opening and closing slowdown functionality
- Mechanical locking system
- Personal-key manual release
- IP44 protection rating
BFT KUSTOS BT A25 Technical Specifications
| Brand | BFT |
| Model | KUSTOS BT A25 |
| Product Code | P935099 00002 |
| Operator Type | Electromechanical Swing Gate Operator |
| Motor Voltage | 24V |
| Board Power Supply | 230V |
| Control Unit | THALIA |
| Power Consumption | 40W |
| Maximum Gate Leaf Length | 2.5 m |
| Maximum Gate Leaf Weight | 400 KG |
| Useful Rod Stroke | 295 mm |
| Maximum Opening Angle | 118° |
| Cycle Time | Approximately 13 Seconds |
| Limit Switch | Magnetic |
| Slowdown Function | Yes |
| Locking System | Mechanical |
| Manual Release | Personal Key |
| Impact Reaction | D-Track |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
BFT D-Track Gate Automation
The BFT D-Track system manages operating force during gate movement. Combined with the THALIA control unit, magnetic limit switches and slowdown functionality, it provides controlled automatic opening and closing for residential and commercial swing gates.
BFT THALIA Control System
The BFT THALIA control unit is designed to manage compatible 24V swing gate operators including the KUSTOS BT series. It supports one or two motors and includes display-based programming, an integrated dual-channel receiver, D-Track safety management and opening and closing slowdown functions.
For Swing Gates up to 2.5 Metres
The BFT KUSTOS BT A25 is suitable for gate leaves up to 400 KG. Maximum gate leaf length is approximately 2 metres without an electric lock and up to 2.5 metres with an electric lock. Correct motor selection should also consider gate construction, hinge geometry and wind exposure.
Suitable Applications
- Villa swing gates
- Residential driveway gates
- Single-leaf swing gates
- Double-leaf swing gates
- Residential compounds
- Commercial property entrances
- Private compounds
- Parking access gates
BFT KUSTOS BT A25 Accessories
- BFT THALIA control board
- BFT Mitto remote controls
- BFT photocell safety sensors
- BFT flashing warning light
- Electric gate lock
- Push button controls
- GSM gate opener
- WiFi smart gate controller
- Access control systems
BFT KUSTOS BT A25 Installation in UAE
Professional BFT swing gate motor installation in UAE is available for the KUSTOS BT A25. Correct operator positioning, mounting bracket installation, gate alignment, magnetic limit adjustment, photocell setup and THALIA control board programming are important for dependable automatic gate operation.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Why Choose BFT KUSTOS BT A25?
- Suitable for gate leaves up to 400 KG
- 24V electromechanical gate automation
- BFT D-Track force management
- Magnetic limit switches
- THALIA control system compatibility
- Opening and closing slowdown
- Mechanical locking system
- IP44 protection rating
- BFT accessories and spare parts available
- Professional installation available across the UAE
Buy BFT KUSTOS BT A25 Swing Gate Motor in UAE
Looking for a BFT KUSTOS BT A25 swing gate motor in UAE? This 24V automatic swing gate opener is suitable for gate leaves up to 400 KG and provides reliable automation for villas, residential compounds and commercial entrances.
Contact us for BFT KUSTOS BT A25 price, availability, compatible accessories, installation and technical support in the UAE.
Call or WhatsApp: +971 55 202 9347
