BFT SHYRA AC Control Board UAE

BFT SHYRA AC Control Board for DEIMOS AC A600

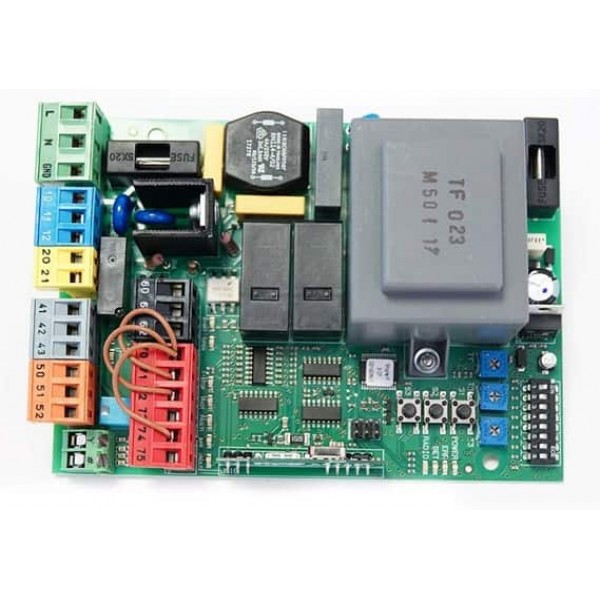

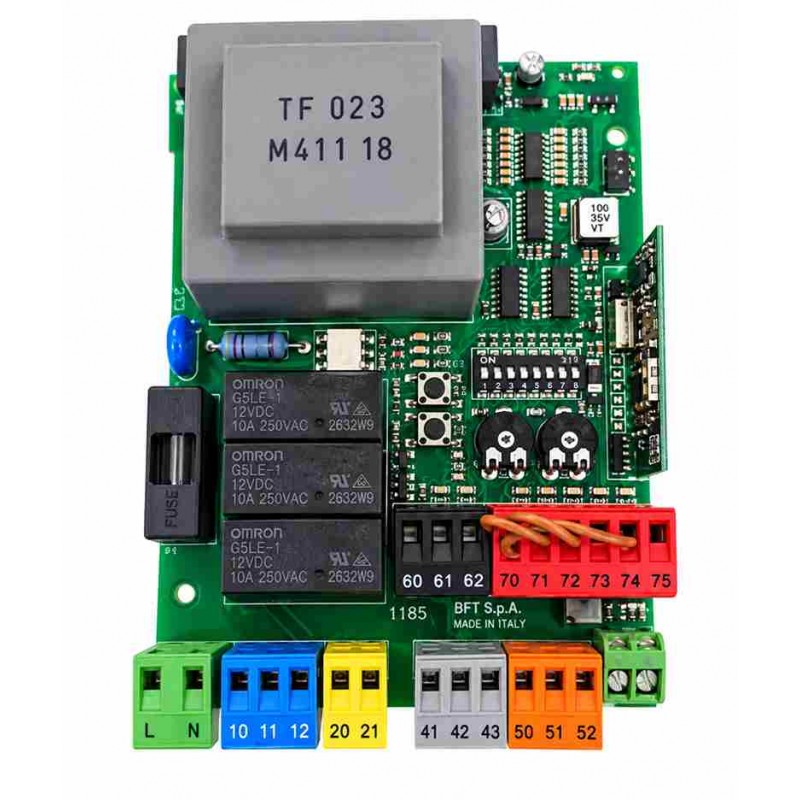

The BFT SHYRA AC Control Board is an original BFT electronic control unit designed for compatible BFT DEIMOS AC sliding gate motors. Reference I700040 10001, the SHYRA AC manages the gate motor, remote controls, safety devices and automatic operating functions from a single electronic control board.

The SHYRA AC operates from a 230V single-phase power supply and controls one 230V single-phase gate motor up to 500W. It features an integrated dual-channel radio receiver, removable terminal blocks, potentiometer-controlled settings, LED fault diagnostics and dedicated safety inputs.

BFT SHYRA AC Features

• Original BFT electronic control board
• Model: SHYRA AC
• Reference: I700040 10001
• Suitable for compatible BFT DEIMOS AC sliding gate motors
• 230V single-phase board power supply
• 230V single-phase motor output
• Maximum motor power: 500W
• Integrated dual-channel radio receiver
• Removable terminal blocks
• Potentiometer-controlled settings
• DIP-switch programming
• LED fault diagnostics
• Two monitored safety inputs
• Dedicated 8K2 safety edge input
• Pedestrian opening function
• Quick closing function
• Pulse blocking function

BFT SHYRA AC Technical Specifications

BFT SHYRA AC for DEIMOS AC A600

The BFT SHYRA AC is used with compatible BFT DEIMOS AC sliding gate automation systems, including the BFT DEIMOS AC A600. It manages the 230V gate motor together with connected remote controls, photocells, safety devices and external command inputs.

Before replacing an existing control board, check the exact gate motor model and the reference printed on the existing electronic board to confirm compatibility.

230V Sliding Gate Motor Control Board

The SHYRA AC operates from a 230V single-phase electrical supply and controls one compatible 230V single-phase gate motor with a maximum operator power of 500W.

Built-In BFT Radio Receiver

The control board incorporates an integrated dual-channel radio receiver, allowing compatible BFT remote controls to be programmed directly into the gate automation system.

DIP Switch & Potentiometer Programming

The BFT SHYRA AC uses DIP switches and potentiometers for configuration and adjustment. This provides straightforward access to important operating parameters during installation, programming and maintenance.

LED Fault Diagnostics

Integrated LED indicators assist technicians during installation and troubleshooting by providing visual information about the status of the control board and connected inputs.

Safety Device Inputs

The SHYRA AC provides dedicated inputs for compatible gate safety equipment such as photocell sensors and safety edges.

A dedicated 8K2 safety edge input is available for compatible resistive safety devices.

Pedestrian Opening & Quick Closing

The BFT SHYRA AC provides useful automatic gate functions including pedestrian opening by remote control, quick closing and pulse blocking. These functions can be configured according to the requirements of the gate installation.

BFT SHYRA AC Replacement Control Board

The BFT SHYRA AC I700040 10001 can be used for replacement and repair of compatible BFT DEIMOS AC sliding gate automation systems.

Before replacing a damaged control board, the motor, capacitor, limit switches, photocells, safety devices and field wiring should also be checked to identify any external fault that may have contributed to the original board failure.

BFT SHYRA AC Control Board Installation in UAE

Professional BFT SHYRA AC Control Board installation in UAE is available for compatible BFT DEIMOS AC sliding gate motors.

Control board replacement, wiring, programming, remote setup and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
