BFT SHYRA-F AC Control Board UAE

BFT SHYRA-F AC Control Board for DEIMOS AC A800

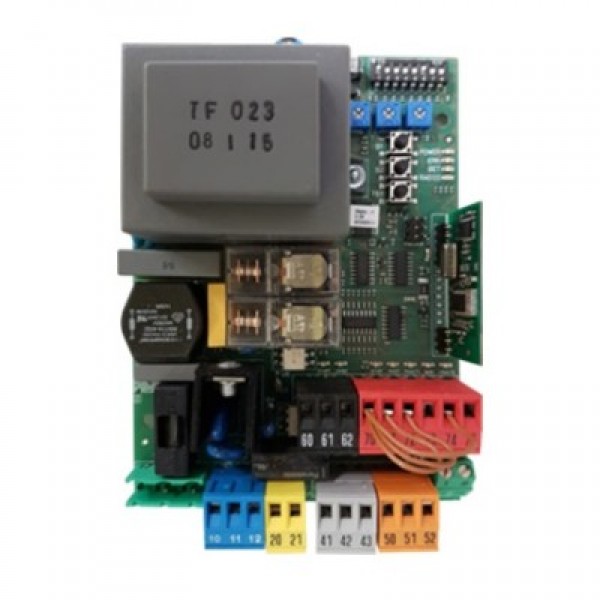

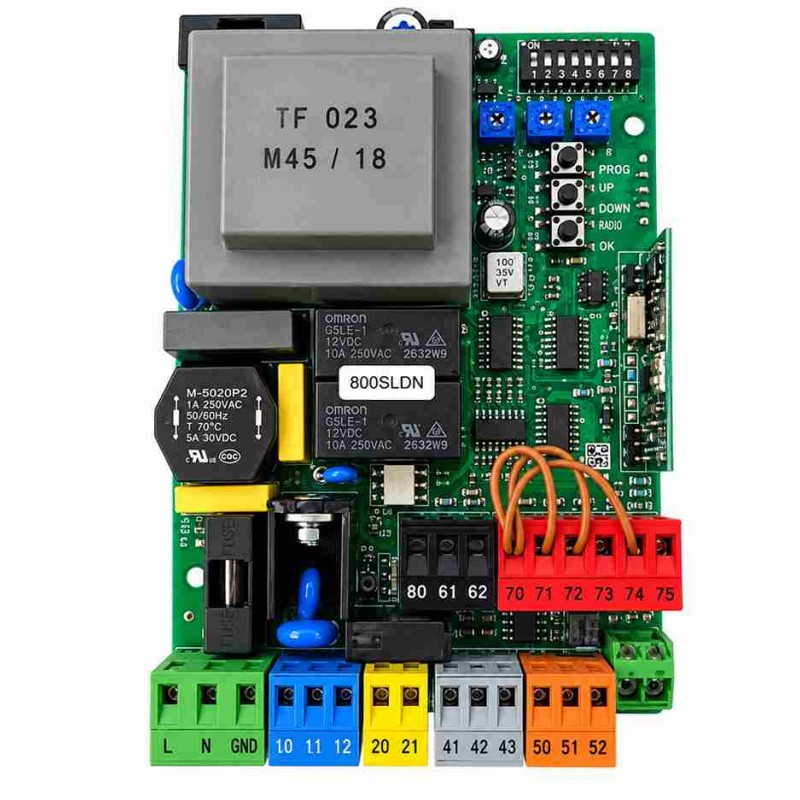

The BFT SHYRA-F AC Control Board is an original BFT electronic control unit designed for the BFT DEIMOS AC A800 sliding gate motor. The SHYRA-F AC manages the 230V gate motor, remote controls, safety devices and automatic operating functions of the sliding gate system.

The control board operates from a 230V single-phase power supply and controls one 230V single-phase gate operator up to 500W. It features an integrated dual-channel radio receiver, potentiometer-controlled settings, LED fault diagnostics and electronic clutch management with trimmer adjustment.

BFT SHYRA-F AC Features

• Original BFT electronic control board
• Model: SHYRA-F AC
• Reference: I700044 10001
• Designed for BFT DEIMOS AC A800
• Controls one 230V sliding gate operator
• 230V single-phase board power supply
• 230V single-phase operator supply
• Maximum operator power: 500W
• Integrated dual-channel radio receiver
• Electronic clutch management
• Clutch adjustment by trimmer
• Potentiometer-controlled settings
• LED fault diagnostics
• Removable terminal blocks
• Two monitored safety inputs
• Pedestrian opening function
• Quick closing function
• Pulse blocking function

BFT SHYRA-F AC Technical Specifications

BFT SHYRA-F AC for DEIMOS AC A800

The BFT SHYRA-F AC is designed for the BFT DEIMOS AC A800 sliding gate automation system. The DEIMOS AC A800 is a 230V sliding gate operator designed for gates weighing up to 800 KG.

The SHYRA-F AC manages the motor together with compatible BFT remote controls, photocells, safety accessories and external gate command devices.

Electronic Clutch Control

An important feature of the SHYRA-F AC is its electronic clutch management. The clutch can be adjusted by trimmer to configure motor force according to the gate installation requirements.

This feature is particularly relevant to the DEIMOS AC A800, which uses an electronic clutch for impact reaction and motor force management.

Built-In BFT Radio Receiver

The SHYRA-F AC incorporates a dual-channel radio receiver, allowing compatible BFT remote controls to be programmed directly into the gate automation system without requiring a separate external receiver.

LED Fault Diagnostics

Integrated LED fault indication assists technicians during installation, maintenance and troubleshooting by providing visual information about control board and input status.

Safety Device Inputs

The BFT SHYRA-F AC provides two monitored safety inputs for integration with compatible gate safety equipment such as photocells and other protection devices.

Pedestrian Opening & Quick Closing

The control unit provides useful automatic gate functions including pedestrian opening by radio control, quick closing and pulse blocking. These functions can be configured according to the requirements of the sliding gate installation.

BFT SHYRA-F AC Replacement Control Board

The BFT SHYRA-F AC can be used as a replacement electronic control board for compatible BFT DEIMOS AC A800 sliding gate automation systems.

Before replacing an existing control board, confirm the gate motor model and the reference printed on the original board to ensure correct compatibility.

BFT SHYRA-F AC Control Board Installation in UAE

Professional BFT SHYRA-F AC Control Board installation in UAE is available for BFT DEIMOS AC A800 sliding gate motors.

Control board replacement, wiring, programming, remote setup and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Buy BFT SHYRA-F AC Control Board in UAE

Looking for an original BFT SHYRA-F AC Control Board in UAE? Contact us for price, availability, replacement, programming and installation support.

Call or WhatsApp: +971 55 202 9347
