BFT KUSTOS BT B40 700 KG Swing Gate Motor UAE
Price 0 AEDIn Stock
BFT KUSTOS BT B40 24V Heavy Duty Swing Gate Opener
The BFT KUSTOS BT B40 700 KG Swing Gate Motor is a powerful 24V electromechanical swing gate opener designed for large and heavy gate leaves weighing up to 700 KG and measuring up to 4 metres. It is suitable for villas, residential compounds, commercial properties and other entrances requiring reliable intensive swing gate automation across the UAE.
Powered by a 24V motor with 40W power consumption, the KUSTOS BT B40 delivers up to 2000N thrust and traction force. Its enclosed worm-screw construction provides additional protection for the operator mechanism, while magnetic limit switches allow accurate opening and closing position adjustment.
The KUSTOS BT B40 incorporates BFT D-Track force management, magnetic limit switches and slowdown functionality. With a 355 mm useful rod stroke, maximum opening angle of 124° and approximately 16-second movement time at 90°, it is designed for demanding residential and commercial swing gate installations.
BFT KUSTOS BT B40 Features
- Maximum specified gate leaf weight up to 700 KG
- Suitable for swing gate leaves up to 4 metres
- 24V electromechanical swing gate operator
- 40W power consumption
- Powerful 2000N thrust and traction force
- BFT D-Track force management
- Magnetic limit switch system
- Enclosed worm-screw mechanism
- 355 mm useful rod stroke
- Maximum opening angle up to 124°
- Approximately 16-second movement time at 90°
- Up to 30 opening cycles per hour
- Opening and closing slowdown functionality
- Mechanical locking system
- Personal-key manual release
- IP44 protection rating
BFT KUSTOS BT B40 Technical Specifications
| Brand | BFT |
| Model | KUSTOS BT B40 |
| Product Code | P935128 00002 |
| International Code | 2614563 |
| Operator Type | Electromechanical Swing Gate Operator |
| Motor Voltage | 24V |
| Board Power Supply | 230V |
| Compatible Control Unit | THALIA BT A80 / Compatible BFT 24V Control Unit |
| Power Consumption | 40W |
| Maximum Gate Leaf Weight | 700 KG |
| Maximum Gate Leaf Length | 4 m |
| Maximum Length Without Electric Lock | 3 m |
| Thrust & Traction Force | 2000N |
| Useful Rod Stroke | 355 mm |
| Maximum Opening Angle | 124° |
| Movement Time | Approximately 16 Seconds at 90° |
| Maximum Opening Cycles | 30 Cycles per Hour |
| Limit Switch | Magnetic |
| Slowdown Function | Yes |
| Locking System | Mechanical |
| Manual Release | Personal Key |
| Impact Reaction | D-Track |
| Protection Rating | IP44 |
| Operating Temperature | -20°C to +55°C |
| Frequency of Use | Intensive |
BFT D-Track Force Management
The BFT D-Track system manages operating force throughout gate movement. Combined with the 24V motor, magnetic limit switches and slowdown functionality, it provides controlled automatic opening and closing for large residential and commercial swing gates.
Magnetic Limit Switch System
The BFT KUSTOS BT B40 uses magnetic limit switches positioned on the operator for accurate adjustment of the gate opening and closing positions. This system helps simplify setup while providing precise gate movement.
Enclosed Worm-Screw Design
The KUSTOS BT B40 features an enclosed worm-screw mechanism designed to protect the internal operating components from external environmental exposure. This makes the operator suitable for demanding outdoor automatic gate installations.
For Swing Gates up to 4 Metres & 700 KG
The BFT KUSTOS BT B40 is designed for swing gate leaves with a maximum specified weight of up to 700 KG or width up to 4 metres. For gate leaves longer than 3 metres, an electric lock should be used according to the installation requirements.
Gate weight and gate length are related installation limits and should not automatically be treated as simultaneous maximum values. Actual motor suitability depends on gate dimensions, construction, hinge geometry and wind exposure.
Suitable Applications
- Large villa swing gates
- Heavy residential driveway gates
- Single-leaf swing gates
- Double-leaf swing gates
- Residential compounds
- Commercial property entrances
- Private compounds and estates
- Parking access gates

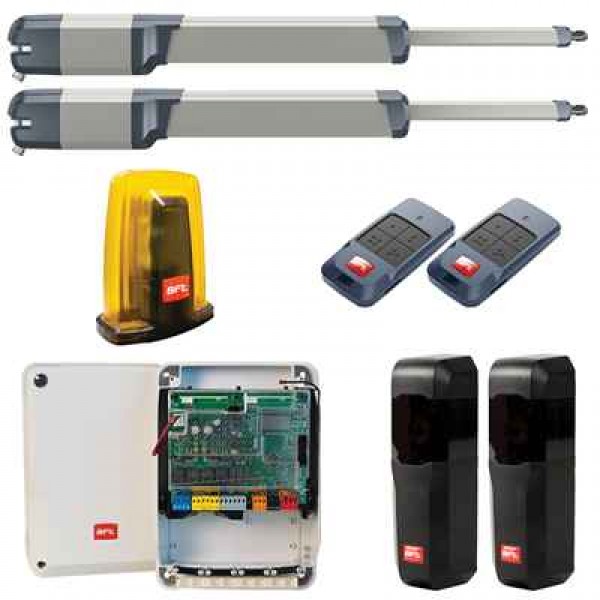

BFT KUSTOS BT B40 Accessories
- BFT THALIA BT A80 control board
- BFT Mitto remote controls
- BFT photocell safety sensors
- BFT flashing warning light
- Electric gate lock
- Push button controls
- GSM gate opener
- WiFi smart gate controller
- Vehicle loop detector
- RFID and access control systems
BFT KUSTOS BT B40 Installation in UAE
Professional BFT KUSTOS BT B40 installation in UAE is available for residential and commercial swing gates. Correct operator positioning, mounting bracket installation, gate alignment, magnetic limit adjustment, safety photocell setup and control board programming are important for dependable automatic gate operation.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Why Choose BFT KUSTOS BT B40?
- Maximum specified gate leaf weight up to 700 KG
- Suitable for gate leaves up to 4 metres
- Powerful 2000N thrust and traction force
- 24V automatic gate technology
- BFT D-Track force management
- Magnetic limit switches
- Enclosed worm-screw construction
- Up to 30 opening cycles per hour
- IP44 protection rating
- Professional installation available across the UAE
Buy BFT KUSTOS BT B40 Swing Gate Motor in UAE
Looking for a BFT KUSTOS BT B40 swing gate motor in UAE? This powerful 24V automatic gate opener is designed for large and heavy swing gates, with a maximum specified gate leaf weight up to 700 KG and gate leaf width up to 4 metres.
Contact us for BFT KUSTOS BT B40 price, availability, compatible accessories, installation and technical support in the UAE.
Call or WhatsApp: +971 55 202 9347
