BFT ATHOS AC A40 400 KG Swing Gate Motor UAE
Price 2,000 AEDIn Stock

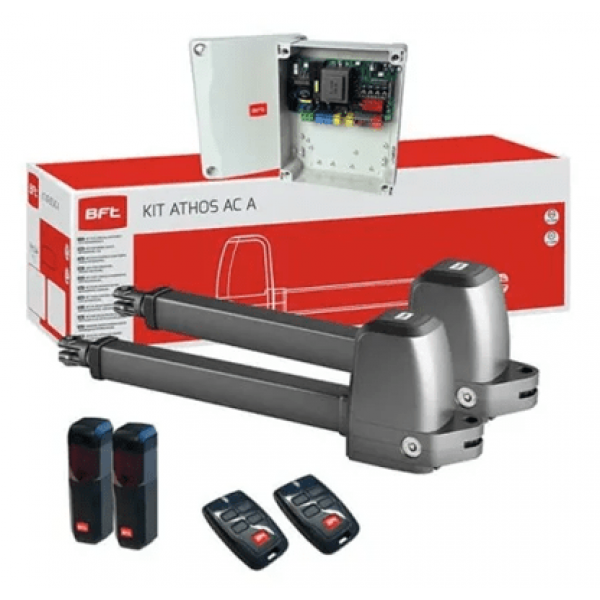

BFT ATHOS AC A40 230V Automatic Swing Gate Opener
The BFT ATHOS AC A40 400 KG Swing Gate Motor is a powerful 230V electromechanical swing gate opener designed for gate leaves measuring up to 4 metres and weighing up to 400 KG. It is suitable for villas, residential compounds, commercial properties and other entrances requiring reliable automatic swing gate operation across the UAE.
Powered by a 230V motor with 280W power consumption, the ATHOS AC A40 provides dependable opening and closing for wide swing gates. The system works with the BFT ALENA SW2 control unit, which can manage single or double-leaf swing gate automation.
With a 400 mm useful rod stroke, maximum opening angle of 110° and approximately 16-second cycle time, the ATHOS AC A40 provides controlled movement for wider gate leaves. Electronic clutch impact reaction, slowdown functionality and mechanical locking provide reliable control during everyday operation.
BFT ATHOS AC A40 Features
- Suitable for swing gate leaves up to 4 metres
- Maximum specified gate leaf weight up to 400 KG
- 230V electromechanical swing gate operator
- 280W power consumption
- Compatible with BFT ALENA SW2 control unit
- 400 mm useful rod stroke
- Maximum opening angle up to 110°
- Approximately 16-second cycle time
- Electronic clutch impact reaction
- Automatic slowdown functionality
- Mechanical locking system
- Triangle-key manual release
- IP54 protection rating
- Suitable for semi-intensive operation
- Suitable for single or double swing gate automation
BFT ATHOS AC A40 Technical Specifications
| Brand | BFT |
| Model | ATHOS AC A40 |
| Product Code | P935115 00002 |
| Operator Type | Irreversible Electromechanical Operator |
| Motor Voltage | 230V |
| Board Power Supply | 230V |
| Control Unit | ALENA SW2 |
| Power Consumption | 280W |
| Maximum Gate Leaf Length | 4 m |
| Maximum Gate Leaf Weight | 400 KG |
| Useful Rod Stroke | 400 mm |
| Maximum Opening Angle | 110° |
| Cycle Time | Approximately 16 Seconds |
| Limit Switch Type | Work Time |
| Slowdown Function | Yes |
| Locking System | Mechanical |
| Manual Release | Triangle Key |
| Impact Reaction | Electronic Clutch |
| Protection Rating | IP54 |
| Operating Temperature | -20°C to +55°C |
| Frequency of Use | Semi-Intensive |
| Interconnectivity | No |
BFT ALENA SW2 Control System
The BFT ALENA SW2 control unit is designed to control one or two compatible 230V swing gate operators. It includes a built-in dual-channel radio receiver and supports functions including pedestrian opening and slowdown management for automatic swing gate installations.
Automatic Swing Gates up to 4 Metres
The BFT ATHOS AC A40 is designed for wider swing gate leaves measuring up to 4 metres and weighing up to 400 KG. This makes it suitable for villa driveways, residential compounds and commercial entrances where a longer-stroke swing gate operator is required.
Suitable Applications
- Villa swing gates
- Wide driveway gates
- Residential compounds
- Single-leaf swing gates
- Double-leaf swing gates
- Commercial property entrances
- Private compounds
- Parking access gates
BFT ATHOS AC A40 Accessories
The ATHOS AC A40 can be integrated with compatible BFT gate automation accessories including:
- BFT ALENA SW2 control board
- BFT Mitto remote controls
- BFT photocell safety sensors
- BFT flashing warning light
- Push button controls
- GSM gate opener
- WiFi smart gate controller
- Vehicle loop detector
- RFID and access control systems
BFT ATHOS AC A40 Installation in UAE
Professional BFT swing gate motor installation in UAE is available for the ATHOS AC A40. Correct operator positioning, mounting bracket installation, gate alignment, opening-angle adjustment, photocell setup and ALENA SW2 programming are important for dependable automatic gate operation.
Supply, installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Why Choose BFT ATHOS AC A40?
- Suitable for gate leaves up to 4 metres
- Maximum specified gate leaf weight up to 400 KG
- Powerful 230V electromechanical operator
- 400 mm useful rod stroke
- Electronic clutch impact reaction
- Automatic slowdown functionality
- Mechanical locking system
- IP54 protection rating
- Suitable for residential and commercial properties
- Professional installation available across the UAE
Buy BFT ATHOS AC A40 Swing Gate Motor in UAE
Looking for a BFT ATHOS AC A40 swing gate motor in UAE? This 230V automatic swing gate opener is designed for gate leaves up to 4 metres and a maximum specified weight of 400 KG, making it a suitable solution for wide residential and commercial swing gates.
Contact us for BFT ATHOS AC A40 price, availability, compatible accessories, installation and technical support in the UAE.
