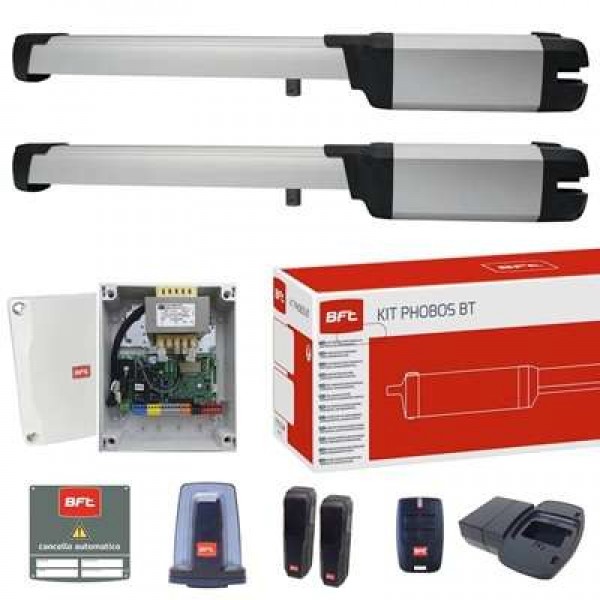

BFT PHOBOS BT B40 Swing Gate Motor in UAE

BFT PHOBOS BT B40 Swing Gate Motor in UAE

BFT PHOBOS BT B40 Swing Gate Motor:

• PHOBOS BT B40
• Refence P935130 00002
• Part number 2614566
• Irreversible electromechanical operator 24 V
• for swing gates weighing up to 700 kg and 4 m long.

Technical data sheets:

• Protection rating : IP44
• Slowdown : Yes
• Power consumption : 40 W
• Operator type : electromechanically operated swing gates
• Interconnectivity : no
• Impact reaction : D-Track
• Thrust and traction force : 2000 N
• Operator weight : 5.2 kg
• Locking : Mechanical
• Useful rod stroke : 470 mm
• Max. width of door/gate wing : 4 m
• Release : Personal key
• Maximum angle : 130 °
• Max. length gate panel without electric lock : 3 m
• Max. opening cycles per hour : 30
• Movement time (90°, excluding slowdown,
• with maximum gate size and weight) : approx. 16 s
• Max. weight of door/gate wing : 700 kg
• Board power supply : 230 V
• Environmental conditions : -20 ÷ 55 °C
• Type of limit switch : Magnetic
• Motor voltage : 24 V
• Control unit : THALIA BT A80. ZARA BT A80
