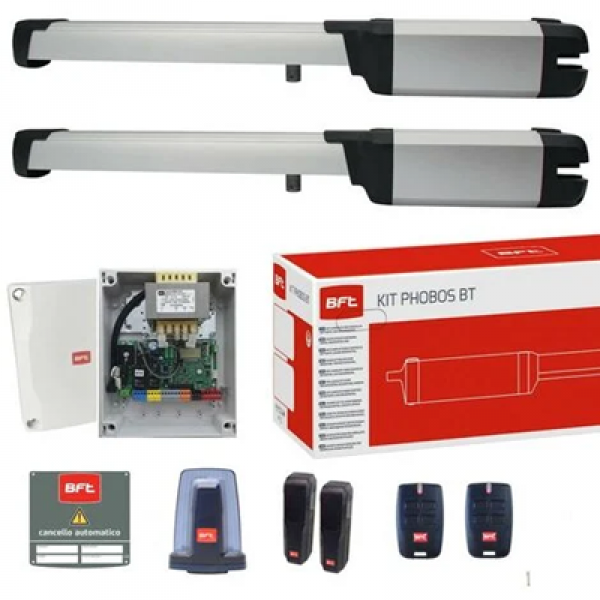

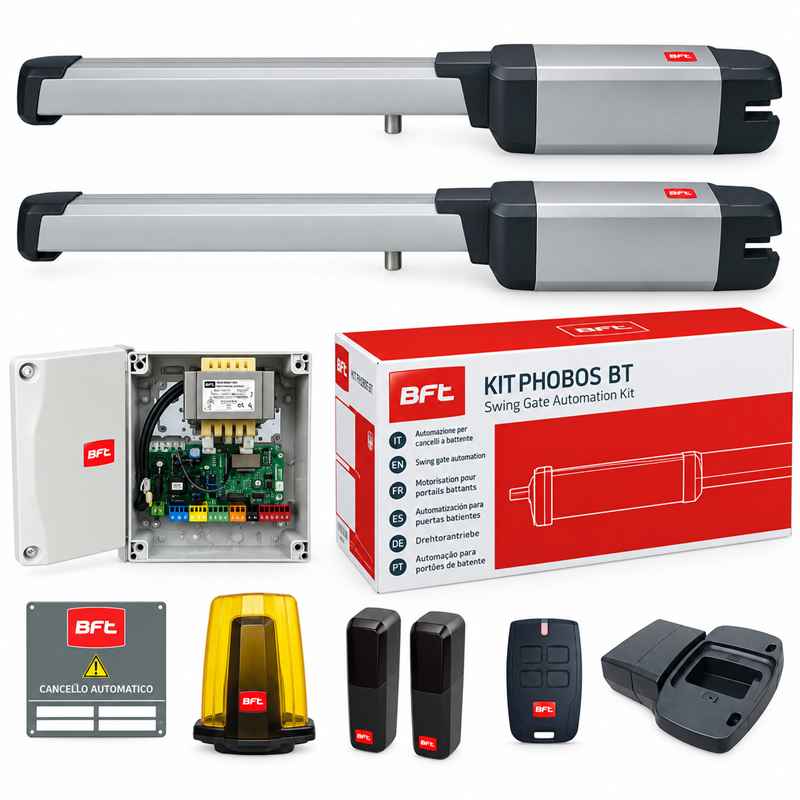

BFT PHOBOS BT A40 Swing Gate Motor UAE

Advanced 24V Swing Gate Automation for Residential & Commercial Gates

The BFT PHOBOS BT A40 Swing Gate Motor is a premium Italian-made 24V electromechanical operator designed for swing gates weighing up to 500 KG and gate leaves up to 4 meters long. Built with advanced automation technology, this high-performance gate opener delivers smooth movement, intelligent safety features and reliable operation for residential and commercial properties throughout the UAE.

Powered by an efficient 24V motor and compatible with THALIA BT A80, ZARA BT A80, THALIA and ZARA control units, the PHOBOS BT A40 provides dependable automation performance while maintaining low energy consumption. Its powerful drive system ensures stable gate movement even under demanding operating conditions.

The integrated D-Track intelligent force management system continuously monitors gate movement and automatically adjusts motor force to improve safety and protect gate components. The advanced magnetic limit switch system ensures maximum positioning accuracy while allowing quick and simple setup.

Designed for intensive operation, the BFT PHOBOS BT A40 combines mechanical locking, magnetic limit switches, slowdown functionality and personal key release to provide secure, smooth and reliable gate automation for villas, compounds, commercial buildings and private entrances across Dubai, Sharjah, Abu Dhabi and all UAE.

BFT PHOBOS BT A40 Features

• Suitable for swing gate leaves up to 4 meters
• Supports gate leaf weight up to 500 KG
• Original BFT Italian automation technology
• 24V low-voltage motor system
• D-Track intelligent obstacle detection system
• Advanced magnetic limit switch technology
• 400 mm useful rod stroke
• Maximum opening angle up to 124°
• Smooth slowdown functionality
• Mechanical locking system
• Personal key emergency release
• IPX4 weather protection rating
• Designed for intensive operation
• Energy-efficient automation system

Applications

• Residential villa entrances
• Double-leaf swing gate systems
• Commercial property entrances
• Private compounds and estates
• Office and business facilities
• Parking access gates
• Residential community security gates

Technical Specifications

• Model: BFT PHOBOS BT A40
• Reference: P935095 00002
• Part Number: 2600864
• Motor Voltage: 24V
• Board Power Supply: 230V
• Control Unit: THALIA BT A80 / ZARA BT A80 / THALIA / ZARA
• Power Consumption: 40W
• Maximum Gate Leaf Width: 4 m
• Maximum Gate Leaf Weight: 500 KG
• Useful Rod Stroke: 400 mm
• Maximum Opening Angle: 124°
• Movement Time (90°): Approximately 20 Seconds
• Limit Switch Type: Magnetic
• Slowdown Function: Yes
• Locking System: Mechanical
• Release System: Personal Key
• Impact Reaction: D-Track
• Protection Rating: IPX4
• Operating Temperature: -20°C to +55°C
• Frequency of Use: Intensive
• Interconnectivity: No

Why Choose BFT PHOBOS BT A40?

• Original Italian engineering and manufacturing quality
• Advanced magnetic limit switch technology
• D-Track intelligent safety management system
• Energy-efficient 24V automation solution
• Suitable for intensive daily use applications
• Reliable performance for residential and commercial gates
• Professional installation and technical support available across UAE
