BFT ATHOS AC A25 Swing Gate Motor UAE

Reliable Swing Gate Automation for Residential & Commercial Gates

The BFT ATHOS AC A25 Swing Gate Motor is an original Italian-made automation system designed for swing gate leaves up to 2.5 meters long and 700 KG in weight. Built for residential villas, commercial properties and private entrances, this electromechanical swing gate opener delivers smooth movement, strong locking performance and reliable daily operation.

Powered by a 230V motor and controlled through the ALENA SW2 control board, the BFT ATHOS AC A25 provides stable performance for automatic swing gate installations. Its 300 mm rod stroke and 110° maximum opening angle make it suitable for a wide range of residential and commercial gate applications.

The ATHOS AC A25 includes electronic clutch impact reaction, slowdown functionality and mechanical locking to improve safety, control and gate stability during operation. With IP54 protection and semi-intensive use capability, it is designed to perform reliably in UAE outdoor conditions.

This complete BFT swing gate motor kit includes two operators, control board, photocell safety sensors, flashing light, remote controls, push button and fixing plates, making it a professional solution for double-leaf swing gate automation.

BFT ATHOS AC A25 Features

• Suitable for swing gate leaves up to 2.5 meters
• Supports gate leaf weight up to 700 KG
• Original BFT Italian automation technology
• 230V electromechanical swing gate operator
• ALENA SW2 control board
• 300 mm useful rod stroke
• Maximum opening angle up to 110°
• 14 second cycle time
• Smooth slowdown functionality
• Mechanical locking system
• Triangle key manual release
• Electronic clutch safety protection
• IP54 protection rating
• Semi-intensive operation

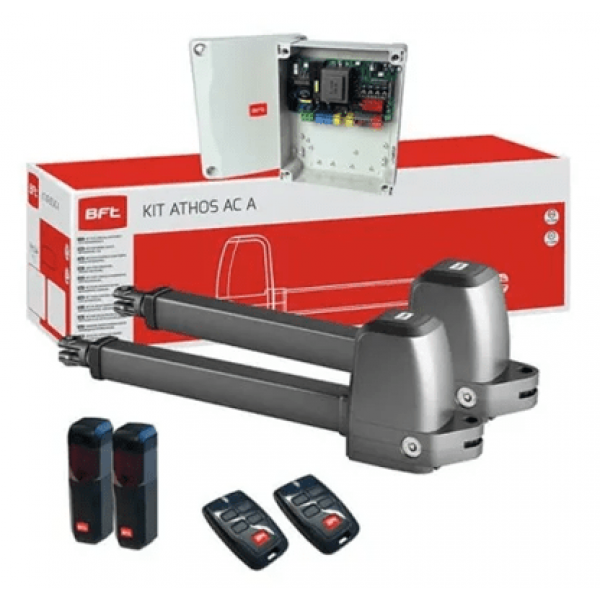

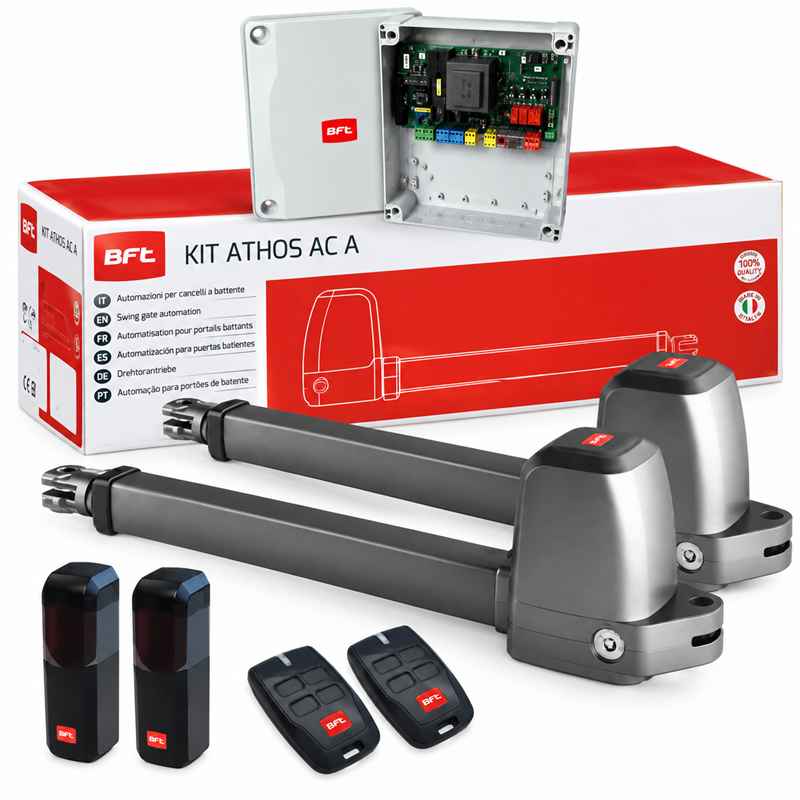

BFT ATHOS AC A25 Kit Includes

• 2 x BFT ATHOS AC A25 Swing Gate Motors
• 1 x ALENA SW2 Control Board
• 1 x Pair of Self-Aligning Photocell Safety Sensors
• 1 x Flashing Light with Integrated Antenna
• 2 x Remote Controls (50-100 Meter Range)
• 1 x Push Button
• 2 x Fixing Plates

Applications

• Residential villa swing gates
• Double-leaf swing gate automation
• Commercial property entrances
• Private compound gates
• Office and building entrances
• Parking access swing gates
• Residential community gates

Technical Specifications

• Model: BFT ATHOS AC A25
• Product Code: P935108 00002
• Operator Type: Irreversible Electromechanical Operator
• Motor Voltage: 230V
• Board Power Supply: 230V
• Control Unit: ALENA SW2
• Power Consumption: 280W
• Maximum Gate Leaf Width: 2.5 m
• Maximum Gate Leaf Weight: 700 KG
• Useful Rod Stroke: 300 mm
• Maximum Opening Angle: 110°
• Cycle Time: 14 seconds
• Limit Switch Type: Work Time
• Slowdown Function: Yes
• Locking System: Mechanical
• Release System: Triangle Key
• Impact Reaction: Electronic Clutch
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Frequency of Use: Semi Intensive

Why Choose BFT ATHOS AC A25?

• Original Italian swing gate automation system
• Reliable solution for residential and commercial gates
• Complete double-leaf swing gate kit included
• Strong mechanical locking performance
• Electronic clutch safety protection
• Suitable for outdoor UAE installation conditions
• Professional installation and technical support available across UAE
