BFT PHOBOS AC A25 Swing Gate Motor UAE

Reliable Swing Gate Automation for Residential & Commercial Gates

The BFT PHOBOS AC A25 Swing Gate Motor is an original Italian-made electromechanical automation system designed for swing gates with leaf lengths up to 2.5 meters and weights up to 400 KG. Engineered for smooth operation, durability and security, this automatic gate opener is ideal for residential villas, commercial properties and private entrances across the UAE.

Powered by a dependable 230V motor and managed through the RIGEL 6 and ALENA SW2 control systems, the PHOBOS AC A25 delivers efficient gate movement with a cycle time of 14 seconds. Its robust construction and 350 mm rod stroke ensure stable performance and reliable automation in daily use applications.

The integrated electronic clutch system continuously monitors operating forces to enhance safety during gate movement. Combined with mechanical locking, slowdown functionality and personal key release, the system provides secure and controlled gate operation in all conditions.

Designed for semi-intensive use, the BFT PHOBOS AC A25 offers excellent reliability and long-term performance for residential and commercial gate automation projects throughout Dubai, Sharjah, Abu Dhabi and all UAE.

BFT PHOBOS AC A25 Features

• Suitable for swing gate leaves up to 2.5 meters
• Supports gate leaf weight up to 400 KG
• Original BFT Italian automation technology
• 230V electromechanical swing gate operator
• RIGEL 6 and ALENA SW2 control systems
• 350 mm useful rod stroke
• Maximum opening angle up to 120°
• 14 second operating cycle
• Smooth slowdown functionality
• Mechanical locking system
• Personal key manual release
• Electronic clutch safety protection
• IPX4 weather protection rating
• Semi-intensive operation

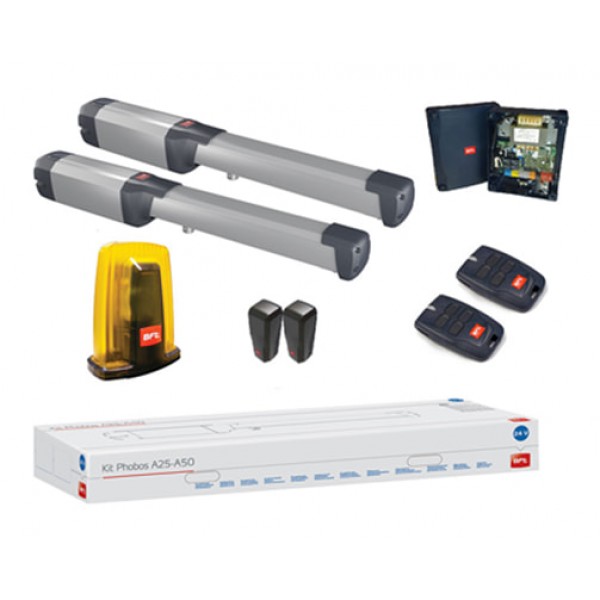

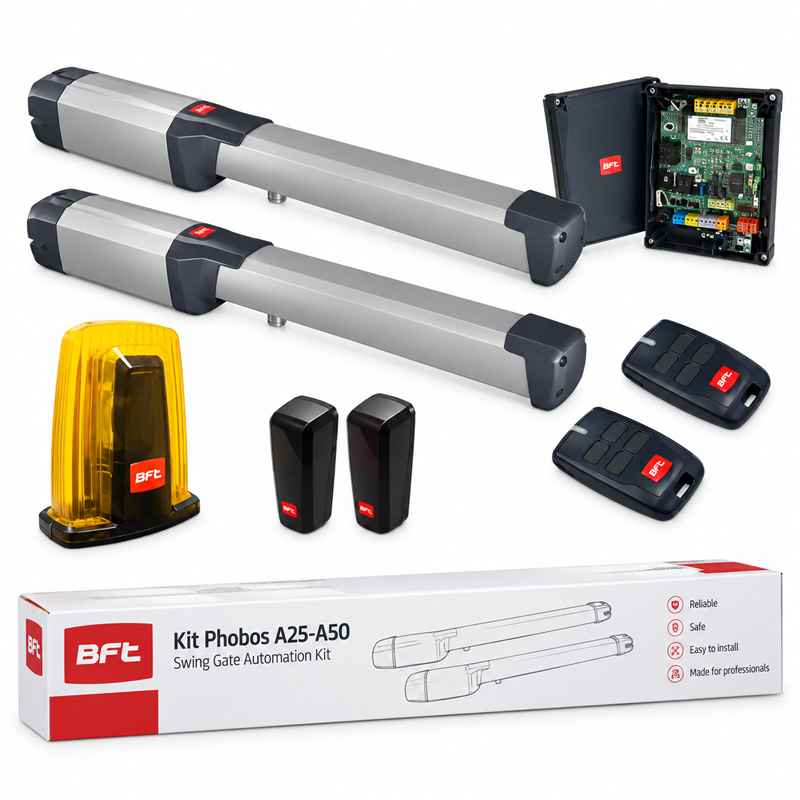

BFT PHOBOS AC A25 Kit Includes

• 2 x BFT PHOBOS AC A25 Swing Gate Motors 230V
• 1 x RIGEL 6 Control Panel 220-230V
• 1 x Pair of Adjustable Photocell Safety Sensors
• 1 x Flashing Light with Integrated Antenna
• 2 x BFT Mitto2 B RCB Remote Controls
• 1 x Push Button
• 2 x Fixing Brackets

Applications

• Residential villa entrances
• Double-leaf swing gate systems
• Commercial property entrances
• Private compound gates
• Office and business facilities
• Parking access gates
• Residential community entrances

Technical Specifications

• Model: BFT PHOBOS AC A25
• Product Code: P935098 00002
• Motor Voltage: 230V
• Control Unit: RIGEL 6 / ALENA SW2
• Board Power Supply: 230V
• Power Consumption: 210W
• Maximum Gate Leaf Width: 2.5 m
• Maximum Gate Leaf Weight: 400 KG
• Useful Rod Stroke: 350 mm
• Maximum Opening Angle: 120°
• Cycle Time: 14 Seconds
• Limit Switch Type: Work Time
• Slowdown Function: Yes
• Locking System: Mechanical
• Release System: Personal Key
• Impact Reaction: Electronic Clutch
• Protection Rating: IPX4
• Operating Temperature: -20°C to +55°C
• Frequency of Use: Semi Intensive

Why Choose BFT PHOBOS AC A25?

• Original Italian engineering and manufacturing quality
• Reliable performance for gates up to 2.5 meters
• Wide 120° opening angle capability
• Advanced electronic clutch safety protection
• Complete automation kit supplied
• Suitable for residential and commercial installations
• Professional installation and technical support available across UAE
