PD-132 Vehicle Loop Detector 24V UAE

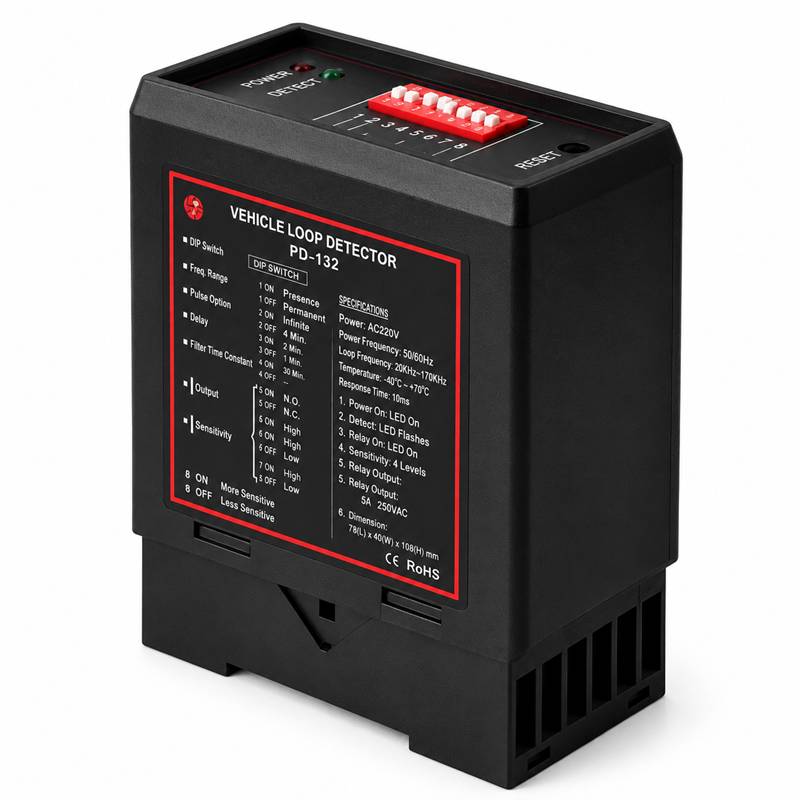

PD-132 24V Single Channel Vehicle Loop Detector

The PD-132 Vehicle Loop Detector 24V is a professional single-channel inductive vehicle detection device designed for automatic parking barriers, sliding gates, swing gates and vehicle access control systems. It detects vehicle presence through an inductive loop cable installed beneath the road surface and provides relay outputs to the connected automation system.

This version of the PD-132 operates on a 24V AC/DC power supply and provides fast vehicle detection with adjustable sensitivity and frequency settings. It is suitable for parking facilities, residential communities, commercial buildings, warehouses, factories and automatic gate systems throughout the UAE.

PD-132 Vehicle Loop Detector 24V Features

• Single channel inductive vehicle loop detector
• Model: PD-132 24V
• 24V AC/DC power supply
• Suitable for parking barriers and automatic gates
• Fast 10ms detection response
• 4 adjustable sensitivity levels
• Frequency range: 20kHz to 170kHz
• Presence detection relay output
• Unlimited or 10-minute presence holding mode
• Loop inductance range: 50μH to 1000μH
• Recommended loop inductance: 100μH to 300μH
• Maximum loop feeder length: 20 metres
• Compact industrial housing
• Suitable for professional gate and parking installations

PD-132 24V Technical Specifications

PD-132 24V for Parking Gate Barriers

The PD-132 24V Loop Detector can be connected to compatible automatic parking barrier control boards to detect vehicles approaching, passing through or remaining over the induction loop.

Depending on the barrier configuration, the detector relay can be used for automatic opening, vehicle presence detection, safety protection or automatic barrier closing logic.

PD-132 24V for Automatic Gates

The PD-132 can also be integrated with compatible sliding gate and swing gate automation systems. Its relay output provides a control signal that can be connected to a compatible gate control board input.

Single Channel Vehicle Detection

The PD-132 monitors one inductive loop installed beneath the road surface. When a vehicle enters the loop area, the metal mass of the vehicle changes the loop inductance and the detector activates its relay output.

Adjustable Sensitivity

The detector provides four adjustable sensitivity levels, allowing installers to configure vehicle detection according to the loop size, vehicle type and installation environment.

Fast 10ms Vehicle Detection

With a reaction time of approximately 10 milliseconds, the PD-132 provides fast detection for parking barrier and automatic gate applications.

Loop Inductance & Cable Installation

The PD-132 supports a total loop inductance range from 50μH to 1000μH, with approximately 100μH to 300μH recommended for typical installations.

The loop feeder cable can be up to 20 metres long and should be twisted at least 20 times per metre to help reduce electrical interference.

PD-132 24V Applications

• Automatic parking barriers
• Sliding gate motors
• Swing gate automation
• Vehicle access control systems
• RFID vehicle access systems
• Residential community entrances
• Commercial parking facilities
• Warehouses and factories
• Industrial entrances
• Traffic management systems

PD-132 24V Loop Detector Installation in UAE

Professional PD-132 24V Vehicle Loop Detector installation in UAE is available for parking barriers, automatic gates and vehicle access control systems.

Loop cutting, loop cable installation, detector wiring, sensitivity adjustment, testing and gate or barrier integration are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Buy PD-132 Vehicle Loop Detector 24V in UAE

Looking for a PD-132 Vehicle Loop Detector 24V in UAE? Contact us for product supply, loop cable, installation and technical support.

Call or WhatsApp: +971 55 202 9347
