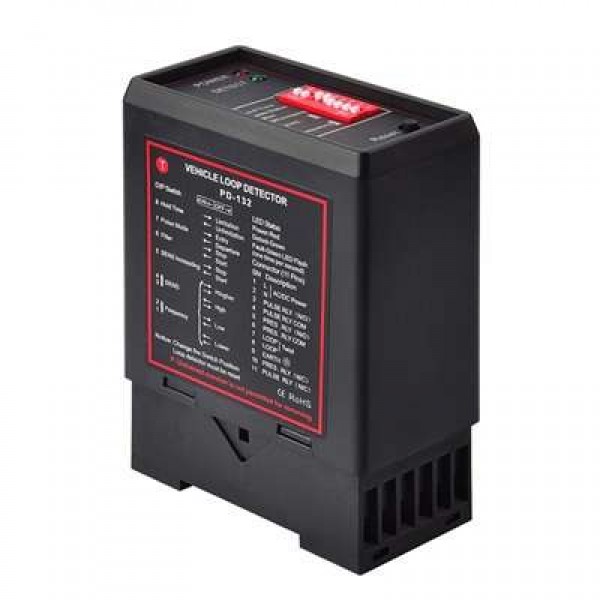

PD-132 Vehicle Loop Detector 230V UAE
Price 99 AEDIn Stock
PD-132 Single Channel Loop Detector for Gate Barriers
The PD-132 Vehicle Loop Detector 230V is a single-channel inductive vehicle detection device designed for automatic parking barriers, sliding gates, swing gates and vehicle access control systems. It detects the presence of a vehicle through an inductive loop cable installed beneath the road surface and provides relay outputs to the connected automation system.
The PD-132 operates on a 230V AC power supply and provides fast vehicle detection with adjustable sensitivity and frequency settings. It is suitable for parking facilities, residential communities, commercial buildings, warehouses, industrial entrances and automatic gate systems across the UAE.
PD-132 Vehicle Loop Detector Features
- Single channel inductive vehicle loop detector
- Model: PD-132
- 230V AC power supply
- Suitable for parking barriers and automatic gates
- Fast 10ms detection response
- 4 adjustable sensitivity levels
- Adjustable operating frequency
- Presence and pulse relay outputs
- Unlimited or limited presence holding mode
- Loop inductance range from 50μH to 1000μH
- Recommended loop inductance from 100μH to 300μH
- Maximum loop connection cable length: 20 metres
- Compact industrial housing
- Suitable for professional gate and parking installations
PD-132 Technical Specifications
| Model | PD-132 |
| Product Type | Vehicle Loop Detector |
| Detection Type | Inductive Loop Vehicle Detection |
| Channels | Single Channel |
| Supply Voltage | 230V AC |
| AC Voltage Tolerance | +10% / -15% |
| Power Consumption | 4.5VA |
| Output Relay Rating | 240V / 5A |
| Frequency Range | 20 kHz – 170 kHz |
| Reaction Time | 10ms |
| Sensitivity | 4 Adjustable Levels |
| Loop Inductance Range | 50μH – 1000μH |
| Recommended Loop Inductance | 100μH – 300μH |
| Maximum Loop Cable Length | 20 Metres |
| Signal Holding Time | Unlimited / Limited |
| Operating Temperature | -20°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Housing Dimensions | 78 × 40 × 108 mm |
PD-132 for Parking Gate Barriers
The PD-132 Loop Detector can be connected to an automatic parking barrier control board to detect vehicles approaching, passing through or stopping over the installed induction loop.
Depending on the barrier control configuration, the detector relay can be used for vehicle opening commands, safety protection or automatic barrier operation.
PD-132 for Automatic Gates
The PD-132 can also be integrated with compatible sliding gate and swing gate automation systems. The relay output provides a dry-contact signal that can be connected to a compatible gate control board input.
Single Channel Vehicle Detection
The PD-132 monitors one inductive loop installed beneath the road surface. When a vehicle enters the detection area, the metal mass of the vehicle changes the inductance of the loop and the detector activates its relay output.
Adjustable Sensitivity
The detector provides four adjustable sensitivity levels, allowing the installer to configure vehicle detection according to the loop size, installation environment and required detection performance.
Adjustable Frequency
The PD-132 provides selectable operating frequencies. Frequency adjustment is particularly useful when multiple induction loops are installed close together, helping reduce interference between adjacent loop detector systems.
Presence & Pulse Relay Outputs
The PD-132 provides presence and pulse relay functions for integration with compatible parking barrier, gate automation and access control systems.
The pulse function can be configured according to the required vehicle entry or exit operation.
PD-132 Loop Cable Installation
An inductive loop cable must be installed beneath the road surface and connected to the PD-132 detector. Correct loop dimensions, cable turns, feeder twisting and installation depth are important for reliable vehicle detection.
The recommended total loop inductance is approximately 100μH to 300μH, while the supported loop inductance range is 50μH to 1000μH.
PD-132 Vehicle Loop Detector Applications
- Automatic parking barriers
- Sliding gate motors
- Swing gate automation
- Vehicle access control systems
- RFID vehicle access systems
- Commercial parking facilities
- Residential community entrances
- Warehouses and factories
- Industrial entrances
- Traffic management systems
PD-132 Loop Detector Installation in UAE
Professional PD-132 Vehicle Loop Detector installation in UAE is available for parking barriers, automatic gates and vehicle access control systems.
Loop cutting, loop cable installation, detector wiring, sensitivity adjustment, testing and gate or barrier integration are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
Buy PD-132 Vehicle Loop Detector in UAE
Looking for a PD-132 Vehicle Loop Detector 230V in UAE? Contact us for product supply, loop cable, installation and technical support.
Call or WhatsApp: +971 55 202 9347
