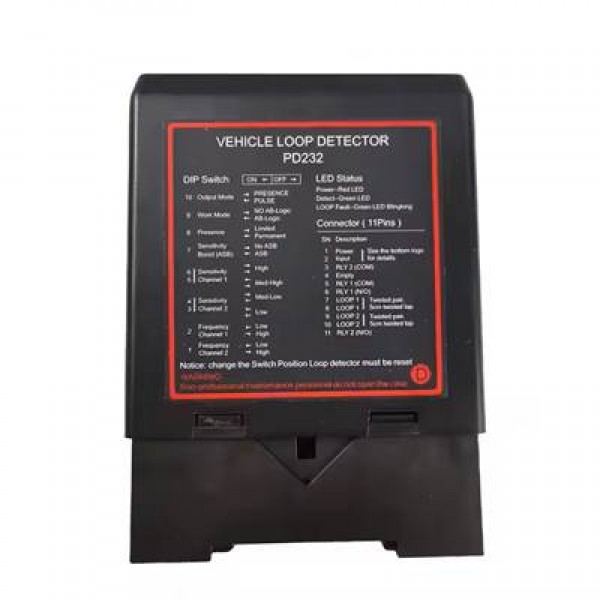

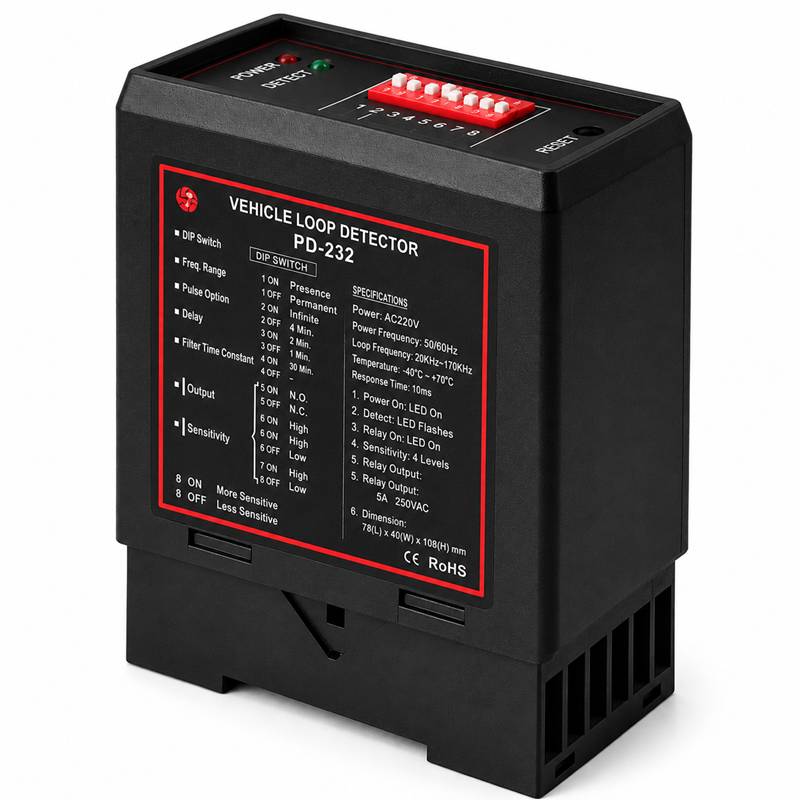

PD-232 Dual Channel Vehicle Loop Detector 230V UAE

PD-232 2 Channel Loop Detector for Gate Barriers

The PD-232 Dual Channel Vehicle Loop Detector 230V is a professional two-channel inductive vehicle detection system designed for automatic parking barriers, sliding gates, swing gates and vehicle access control systems. The dual-channel design allows two independent inductive loops to be monitored from a single detector.

The PD-232 operates on a 230V AC power supply and detects vehicle presence by monitoring changes in the inductance of loop cables installed beneath the road surface. It is suitable for entry and exit lanes, parking facilities, residential communities, commercial buildings, warehouses and industrial vehicle access systems throughout the UAE.

PD-232 Dual Channel Loop Detector Features

• Dual channel inductive vehicle loop detector
• Model: PD-232
• 230V AC power supply
• Monitors two independent vehicle loops
• Two relay outputs
• Suitable for automatic gates and parking barriers
• Fast vehicle detection response
• 4 adjustable sensitivity levels
• 4 adjustable frequency settings
• Vehicle presence and pulse operation
• Selectable pulse operation
• Automatic loop tuning
• Compact industrial housing
• Suitable for dual-lane vehicle access applications

PD-232 Technical Specifications

Dual Channel Vehicle Detection

The main advantage of the PD-232 compared with a single-channel loop detector is its ability to monitor two independent inductive loops. This makes it suitable for vehicle access systems requiring more advanced detection and traffic management.

The two loops can be installed according to the required gate, barrier or access control configuration.

PD-232 for Parking Gate Barriers

The PD-232 Dual Channel Loop Detector can be integrated with compatible automatic parking barrier control systems. Vehicle detection signals can be used for barrier opening, safety protection, vehicle presence monitoring and other supported barrier functions.

Using two loops can provide additional flexibility for installations requiring separate vehicle detection positions.

PD-232 for Entry & Exit Vehicle Detection

The dual-channel design makes the PD-232 suitable for entry and exit vehicle access applications. Two inductive loops can be monitored by a single detector for compatible parking and traffic control configurations.

PD-232 for Automatic Gates

The PD-232 can also be integrated with compatible automatic sliding gates and swing gates. Its relay outputs can provide vehicle detection signals to compatible gate motor control boards.

Adjustable Sensitivity

The PD-232 provides four adjustable sensitivity levels, allowing the detector to be configured according to the loop dimensions, installation environment and type of vehicle being detected.

Adjustable Frequency

The detector provides multiple frequency settings to help reduce interference between inductive loops installed close to each other. Correct frequency selection is particularly important in installations using multiple vehicle detection loops.

Fast Vehicle Detection

The PD-232 provides a fast detection response suitable for parking barriers, automatic gates and vehicle access control systems where reliable vehicle recognition is required.

Vehicle Presence & Pulse Operation

The PD-232 supports vehicle presence and pulse operating functions. Depending on the detector configuration, the relay can provide a signal while a vehicle is present or generate a pulse for compatible automation and access control equipment.

Loop Cable Installation

Two inductive loop cables can be installed beneath the road surface and connected to the two detection channels of the PD-232. Correct loop dimensions, number of turns, cable installation and feeder twisting are important for reliable vehicle detection.

A typical recommended loop inductance is approximately 100μH to 300μH. Loop feeder cables should be twisted to help reduce electrical interference.

PD-232 Dual Channel Loop Detector Applications

• Automatic parking barriers
• Dual-loop vehicle detection
• Entry and exit vehicle access systems
• Automatic sliding gates
• Automatic swing gates
• Vehicle access control systems
• RFID vehicle access systems
• Commercial parking facilities
• Residential compounds
• Warehouses and factories
• Industrial entrances
• Traffic management systems
• Security checkpoints

PD-132 vs PD-232 Loop Detector

The PD-132 is a single-channel vehicle loop detector designed to monitor one inductive loop, while the PD-232 is a dual-channel detector capable of monitoring two independent vehicle loops.

For applications requiring only one vehicle detection loop, the PD-132 is normally sufficient. For installations requiring two loop detection points, the PD-232 provides both channels within one detector.

PD-232 Loop Detector Installation in UAE

Professional PD-232 Dual Channel Vehicle Loop Detector installation in UAE is available for parking barriers, automatic gates and vehicle access control systems.

Loop cutting, loop cable installation, detector wiring, sensitivity adjustment, testing and automation integration are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.

Buy PD-232 Dual Channel Loop Detector in UAE

Looking for a PD-232 Dual Channel Vehicle Loop Detector 230V in UAE? Contact us for product supply, loop cable, installation and technical support.

Call or WhatsApp: +971 55 202 9347
